Simple handling of the fire alarm panel

Users appreciate the operation via the full color 7" touch display. User navigation is intuitive thanks to the tile design, functional conditions being visualized via the display color and messages being displayed in clear text. Additional functions can be easily managed by programmable area control panels. Even the legally required documentation becomes simpler. The LogicManager configuration software automatically generates general system documentation. So when making changes to configuration and use, documentation becomes child’s play. Furthermore, functional tests for refurbishment or maintenance measures are userguided and securely saved.

Modular design of the Clunid FMZ6000

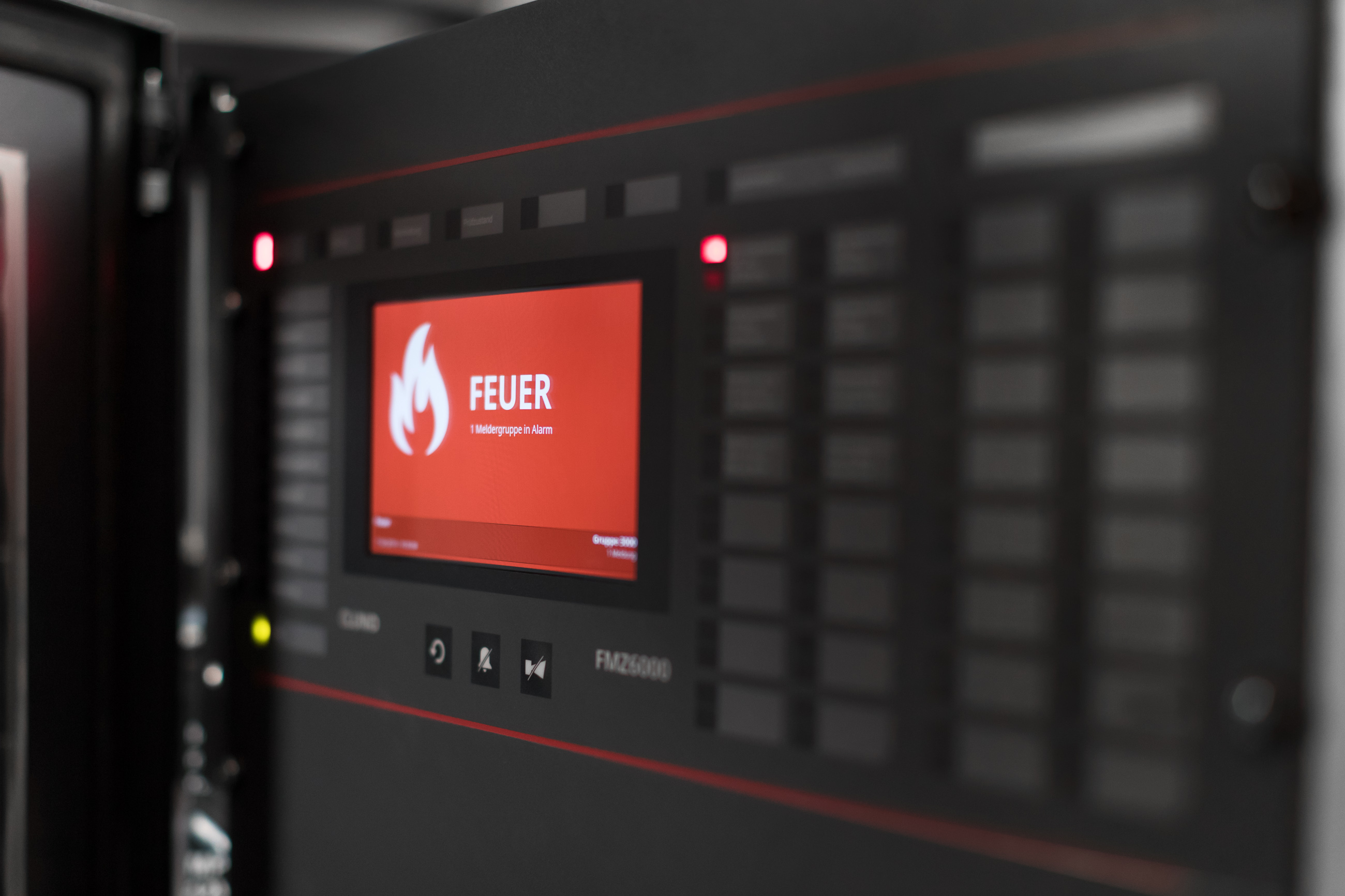

As standard the Clunid FMZ6000 is fitted with a 7" touch display including group displays, a central and redundant signal processing unit, power supply unit and battery supply. It is prepared for up to 80 function modules and 27 zone control panels

• Signal processing unit: The control panel technology is characterized by rapid responses and powerful performance. The signal processing unit is fitted with redundant processors and thus reduces the probability of failure to a minimum.
• Function modules: Depending on requirements, additional function modules are available from input modules such as conventional detector or loop AP via output modules such as control groups or relays up to communication modules such as fire brigade periphery or networking. A suitable module is available for every application.
• Power supply unit: The Clunid FMZ6000 can be used worldwide. The power supply units used come with extended voltage range input and cover various supply voltages. The voltage output and control group modules are provided with electronic fuses and are thus UL and FM-conformant.
• DC/DC converter: A DC/DC converter can be optionally integrated which stabilizes the output voltage from the control groups and thus provides for a constant output voltage even in battery operation or during temperature fluctuations. This is often necessary for standard components such as horns or solenoid valves without adequate extended voltage range input.

Housing sizes: All components can be fitted in the four standard housing sizes D04, D14, D21 and D40. These can be individually extended and offer sufficient scope for a configuration that meets your needs.
