Redox Flow's Complete Electrolysis Setup gives you everything you need to start running water electrolysis experiments right out of the box (membranes and electrodes not included, but available). Built around our modular X-Cell electrolyzer, the setup includes a 2-channel peristaltic pump, programmable power supply, reservoir flasks with specialized lids, fittings, tubing, and test wires - plus an optional gas separation unit for handling evolved gases.

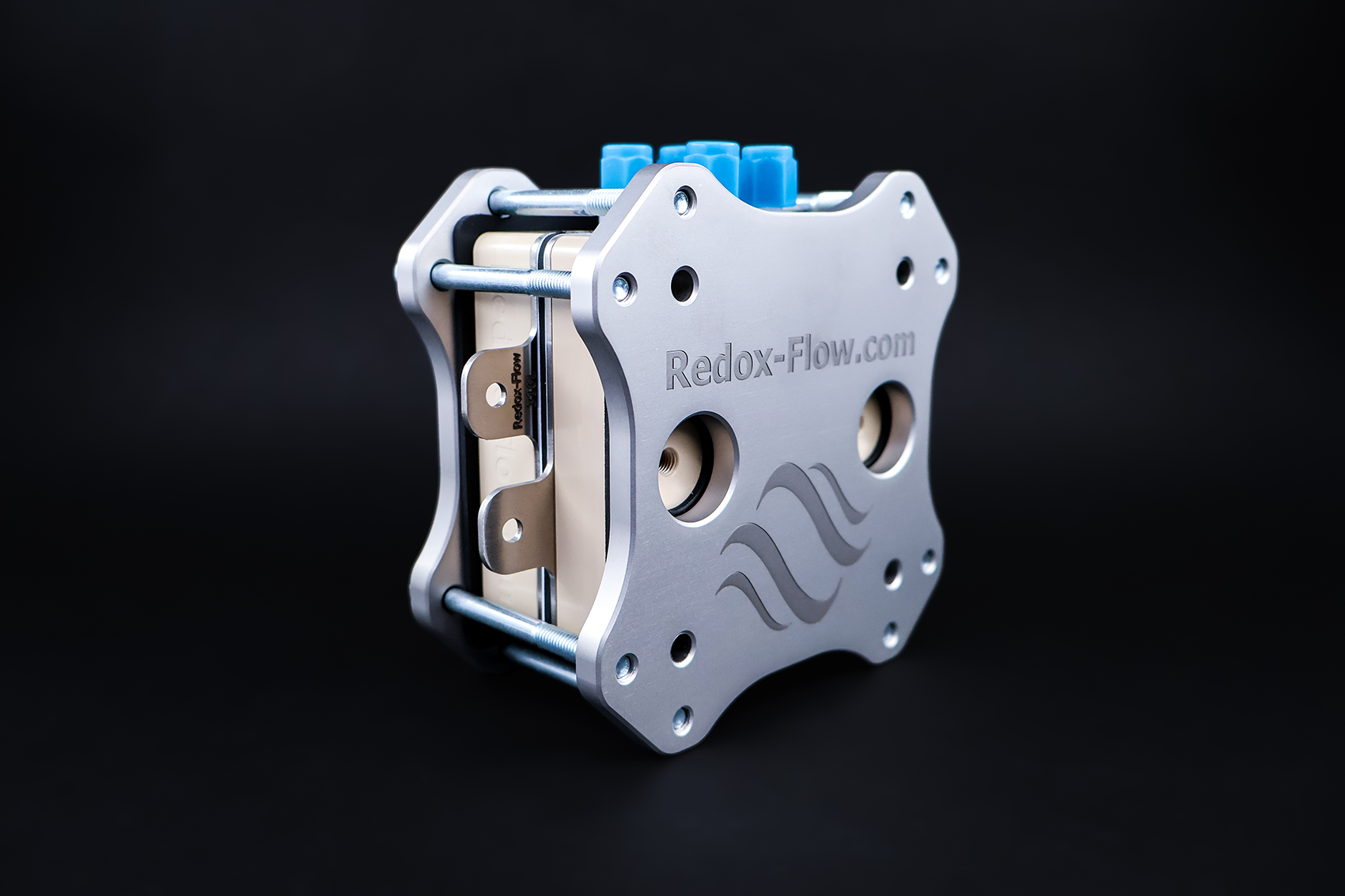

At the heart of the system is our X-Cell electrolyzer, a flexible test cell built for repeatable, high-quality data. Choose between 2.5 cm × 2.5 cm or 5 cm × 5 cm active areas, and configure the current collectors and gaskets to match your electrochemistry – nickel, titanium, stainless steel, gold-coated titanium, platinum-coated titanium, or copper current collectors, with or without an interdigitated flow field, paired with PTFE, EPDM, or VITON gaskets. The main flow body is machined from corrosion-resistant PEEK (PTFE also available), rated for continuous operation up to 90°C and pressures below 10 bar, with high chemical resistance including 30 wt% KOH – so the cell holds up whether you’re screening alkaline electrolytes or running membrane-based setups. Aside from the current collectors and electrodes, the electrolyte only ever contacts corrosion-resistant polymers, which matters when you need to keep electrodes and catalysts free of metal dissolution and poisoning.

Whether you're screening catalysts, testing new membranes, or scaling toward a stack, the Complete Electrolysis Setup is built for fast assembly, so you spend less time sourcing components and more time in the lab.
