POWER STATION systems from plating electronic support scalable hydrogen DC supply concepts, from modular power supply modules to centralized cabinet solutions. Both system approaches are designed for reliable integration into demanding electrolyzer and plant environments.

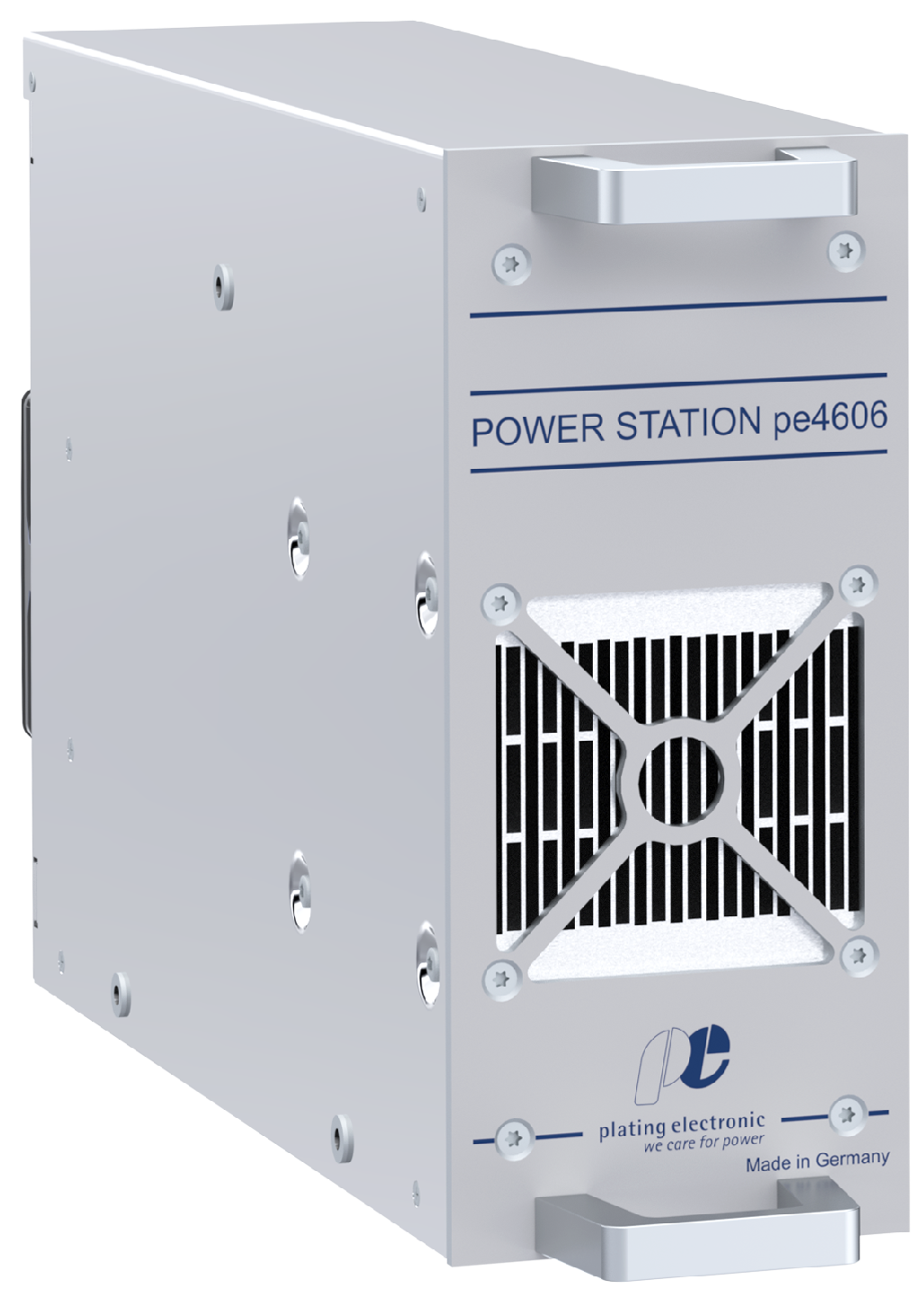

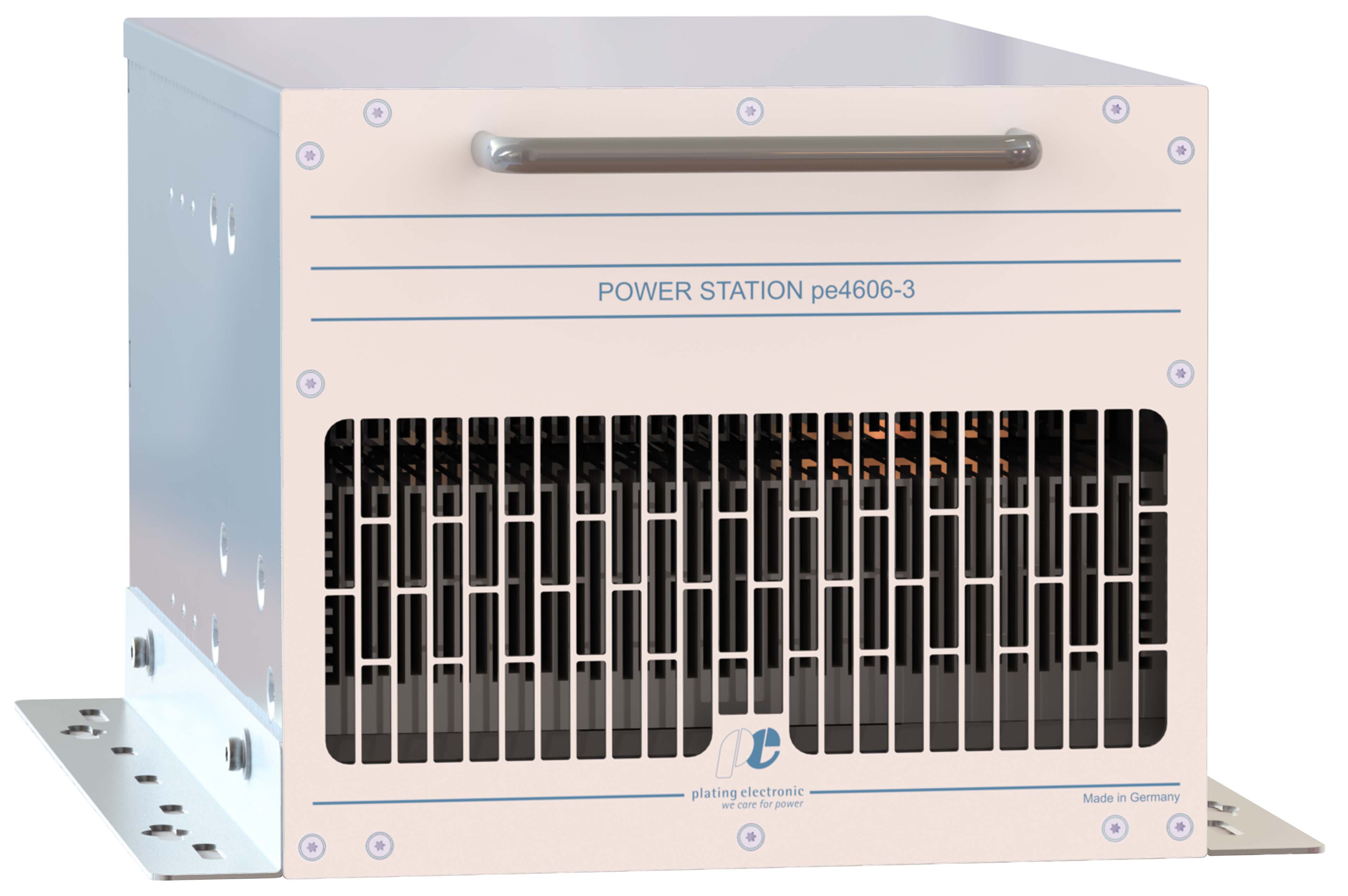

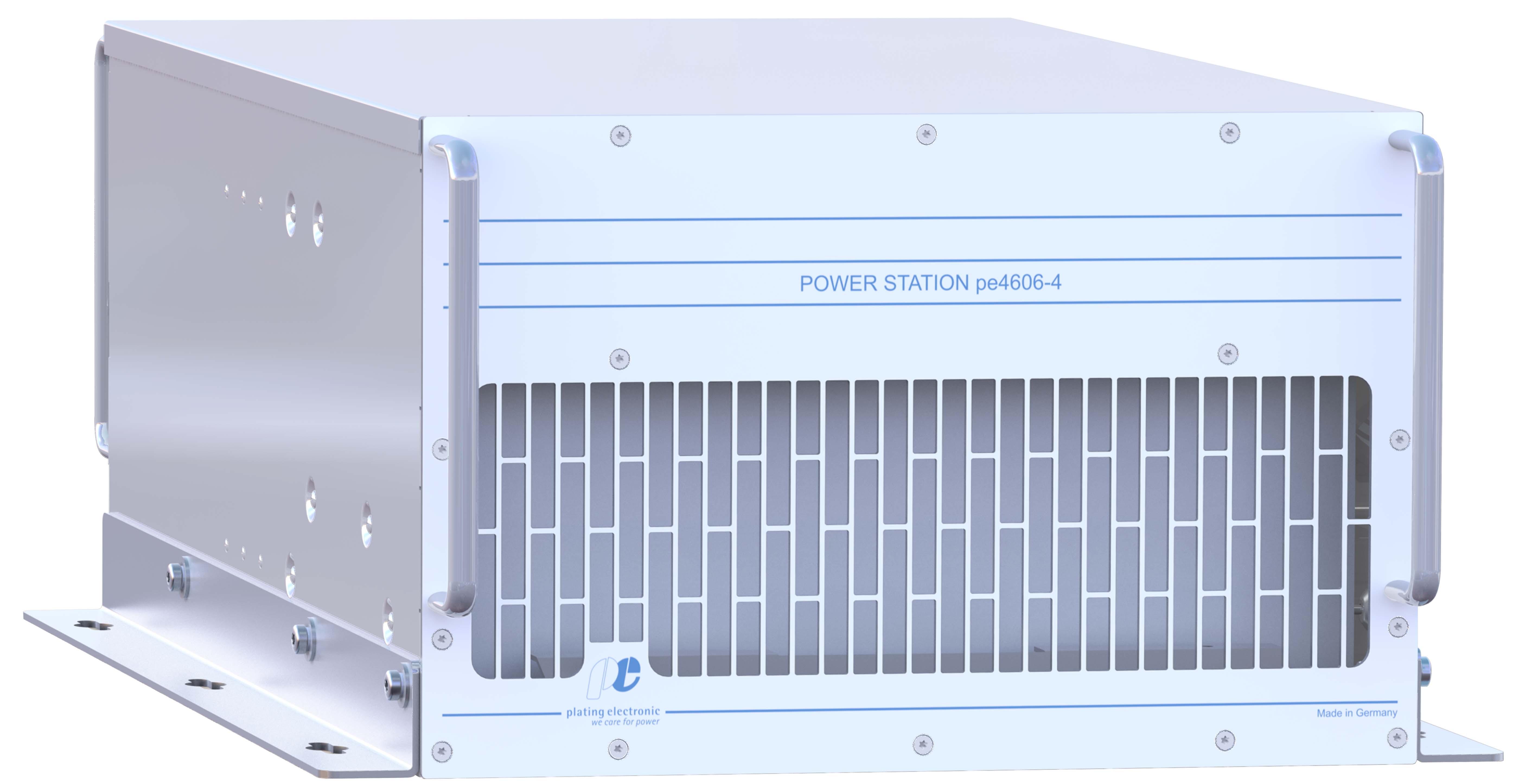

DC power supply modules of the pe4606 series for small applications and power. Typical performance range per module:

• 6–48 kW DC output power

• Up to 2,200 A, depending on variant

• Up to 600 V, high-voltage variants

• Up to 160 V, high-current variant

Key characteristics:

• Switch-mode technology

• Regulation accuracy < 1 %

• Ripple < 1 %

• Efficiency up to 96 %

• Wide mains input 380–460 VAC ±10 %

• Air- or water-cooled variants

Parallel connection allows flexible adaptation to stack voltage and current requirements
