I-TS-3870:

Single-channel system for testing and simulating batteries, fuel cells, and powertrains. One output channel capable of up to 1500 V or 1200 A. Maximum power in single-channel operation: 650 kW; up to 2.6 MW in parallel operation (maximum values for voltage, current, and power depend on the specific configuration).

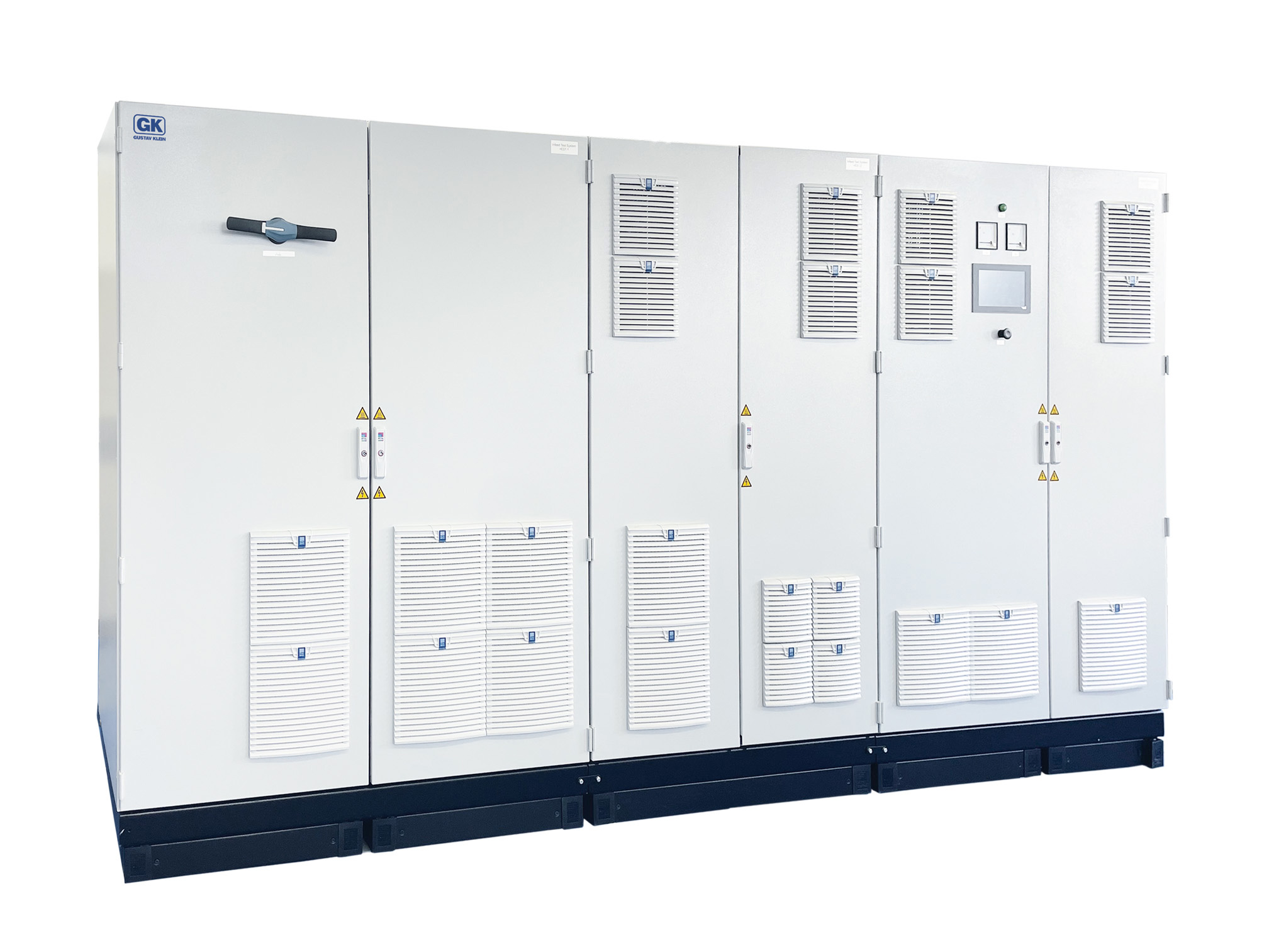

MI-TS-3871:

Multi-channel system for energy-efficient testing and simulation. Two or four outputs, up to 1500 V or 1200 A per output (no galvanic isolation between DC outputs // Maximum values for voltage, current, and number of output channels depend on the specific configuration).

Typical Applications

• Battery testing (battery charging / discharging tests)

• Battery simulation / battery emulation

• Test power supply for contactors, fuses, circuit breakers

• EV / EVSE testing

• Power supply for trains for maintenance purposes at ICE facilities

• Load for fuel cells

• Testing of DC motors (powertrain)
