Used to regulate, isolate and divert gas in installation

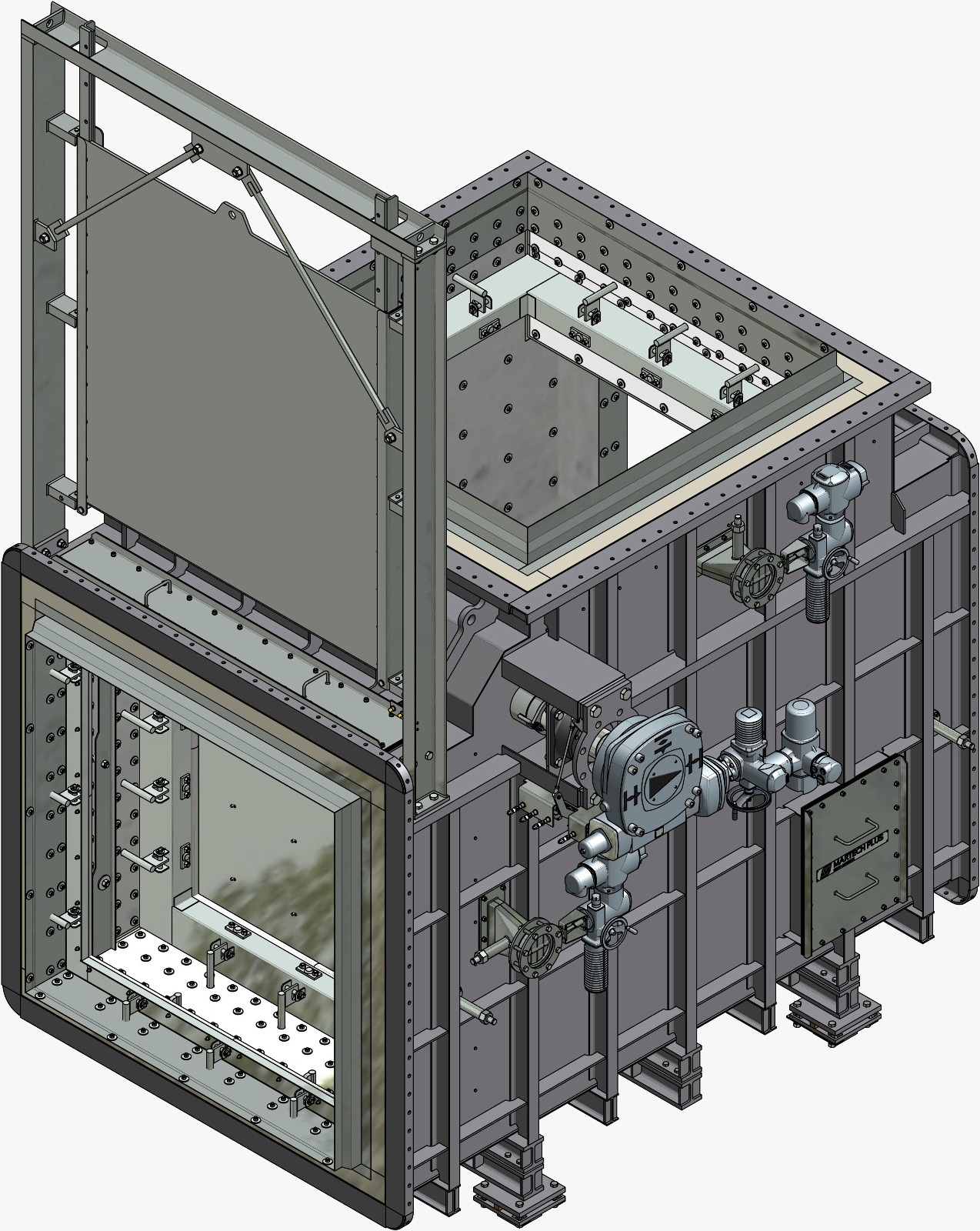

Diverters have three duct connections. The flap blade blocks off one of the ducts at a time.

Different sizes

Round or rectangular configuration

custom solution under our client requirements

Lattice supported blades = no thermal distortion, low cross-section loss, low weight

Casing and all internals made of stainless steel

With electric, pneumatic or hydraulic actuator

Tightness can be between 95-100%

Temperature resistance up to 600°C

Operating pressure up to 0,5 bar

Multitude of application worldwide, e.g. FGD and DeNOx plants, Power Plants, off-shores, gasturbine plants
