Tenaris THera® portfolio covers a wide range of high pressure applications, with hydrogen storage masses ranging between a few kilograms for individual pressure vessels, up to several tonnes for multiple vessels installed into modular and stackable racks.

The core of these systems are Tenaris THera® monolithic seamless steel vessels, capable of withstanding extremely high service pressures. These are modular and flexible solutions in terms of both size and expandability.

Tenaris has a fully integrated production cycle and is the only high pressure hydrogen storage vessels manufacturer able to control the entire production, from steel making to the finished product.

Design standards

Full compliance and certification to European Pressure Equipment Directive, PED 2014/68/EU. Available design codes:

• EN 13445-3

• AD 2000-Merkblatter B0+B1+B9+S1

• EN 17533

Full compliance and certification to ASME: Boiler & Pressure Vessel Code. BPVC Sec. VIII

Design Pressure and Temperatures

1. 1034bar (15000psi)
2. 550bar (8000psi)
3. 330bar (4785psi)
4. 240bar (3500psi)

Design Temperature range is typically -40° C to +65° C.

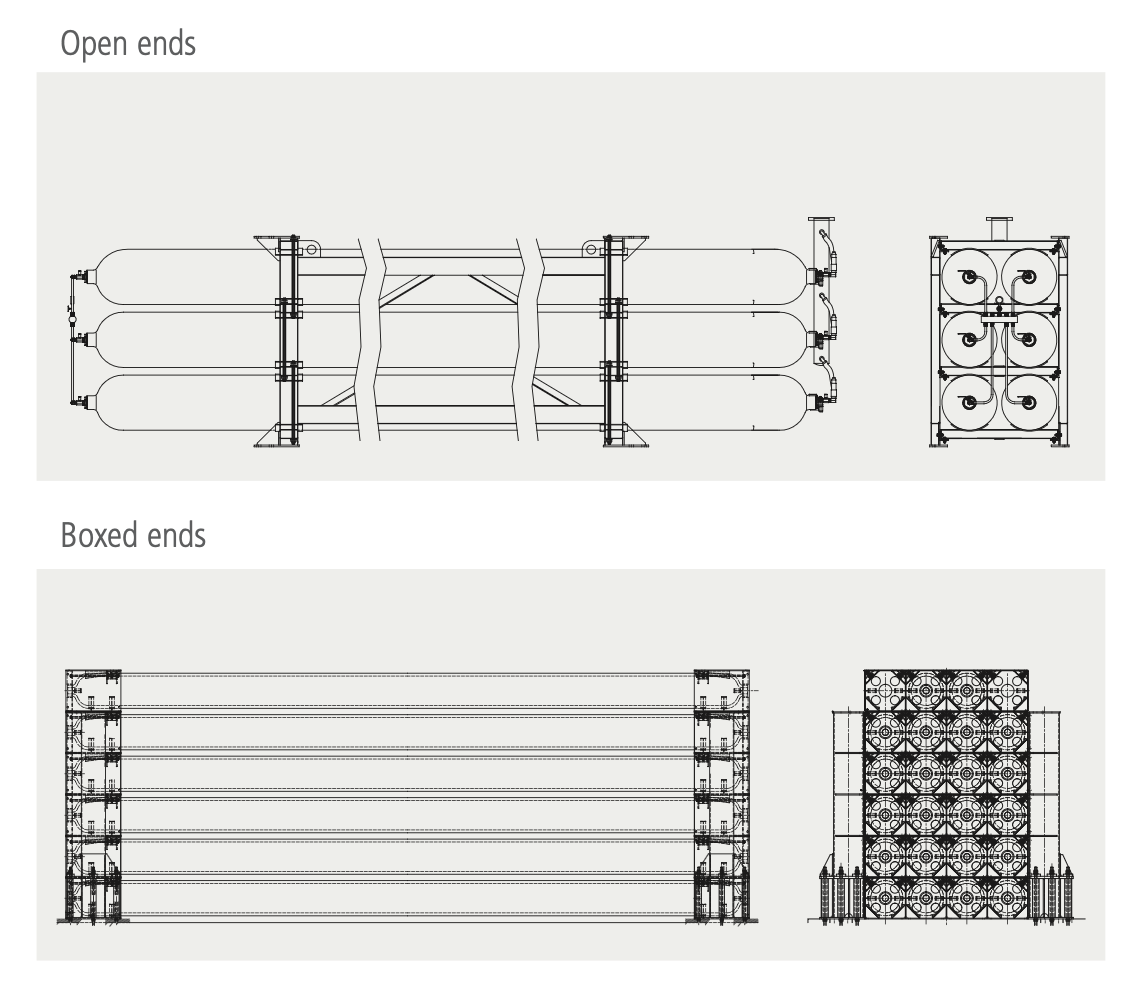

Upon request, THera® pressure vessels can be supplied in pre-assembled modular structures that are easy to transport on site and can be installed side by side or stacked vertically according to the location and application requirements.
