Diameter: 0.19mm/0.25mm/Customizable

Mesh Count: 40/46

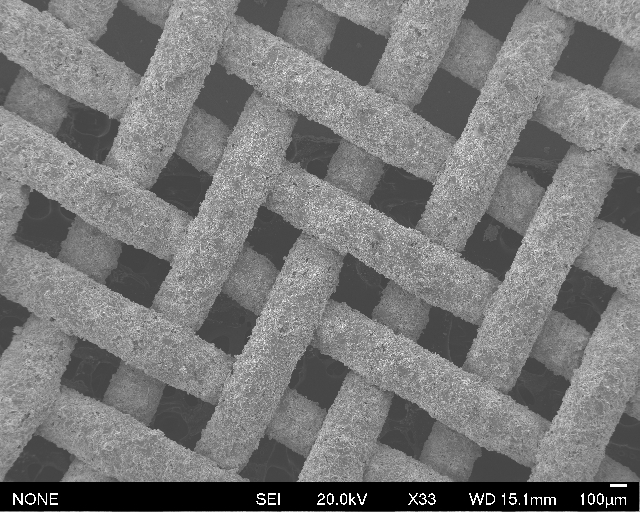

Weave Type: Plain/Twill

Thermal Spray Process: Plasma-Sprayed Electrode

Cell Voltage: 1.8V@4000A/㎡ φ1800mm

1.7V@4000A/㎡φ158mm

Overpotential: @5000A/㎡：HER (vs. RHE) ~260mV；OER（vs. RHE) ~350mV

Cell Voltage Decay Rate: <1%/year

Aluminium Retention Ratio: <6% (XRF)

Powder Utilization Rate: 240±30g/㎡, customizable

Customized specifications according to customers' requirements.
