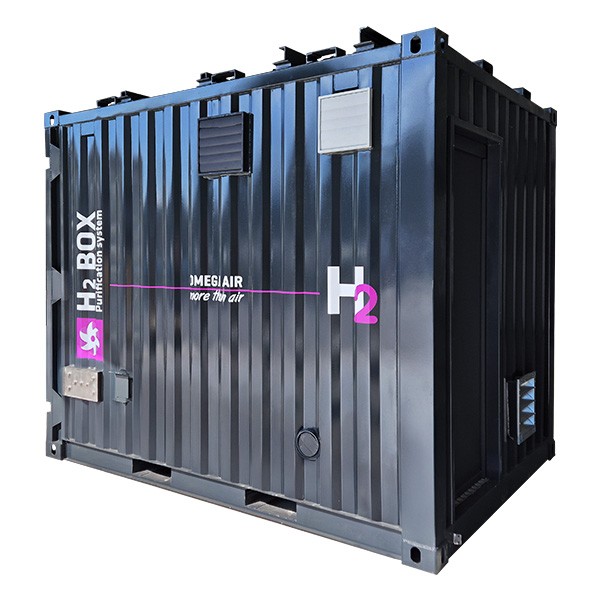

The OMEGA AIR H2 BOX is a complete containerised system for the continuous removal of moisture, oxygen and solid particles from hydrogen.

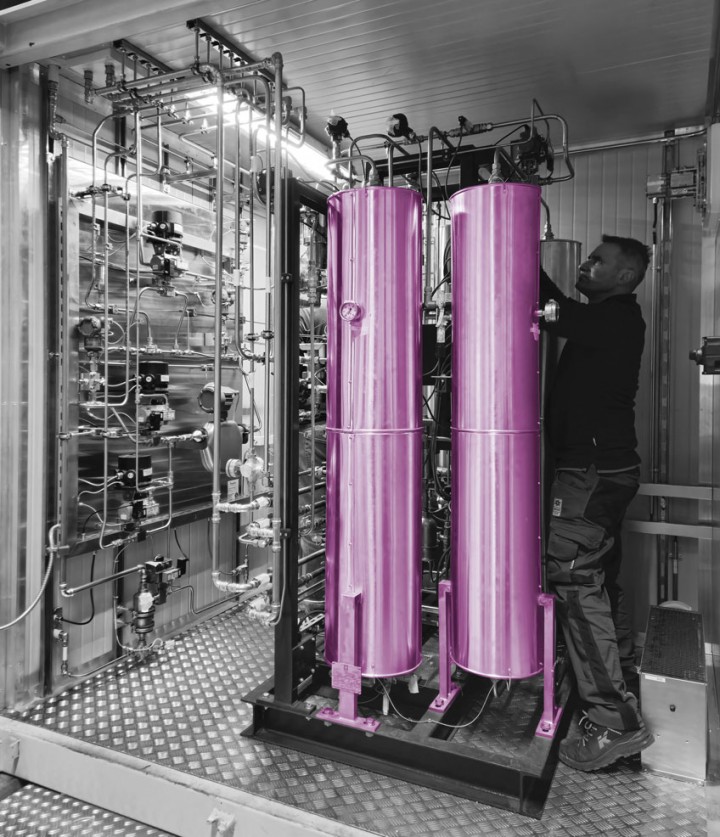

All components are functionally connected, wired and tested before delivery. The weatherproof container is suitable for outdoor installation, easy to transport and ready for connection and operation.

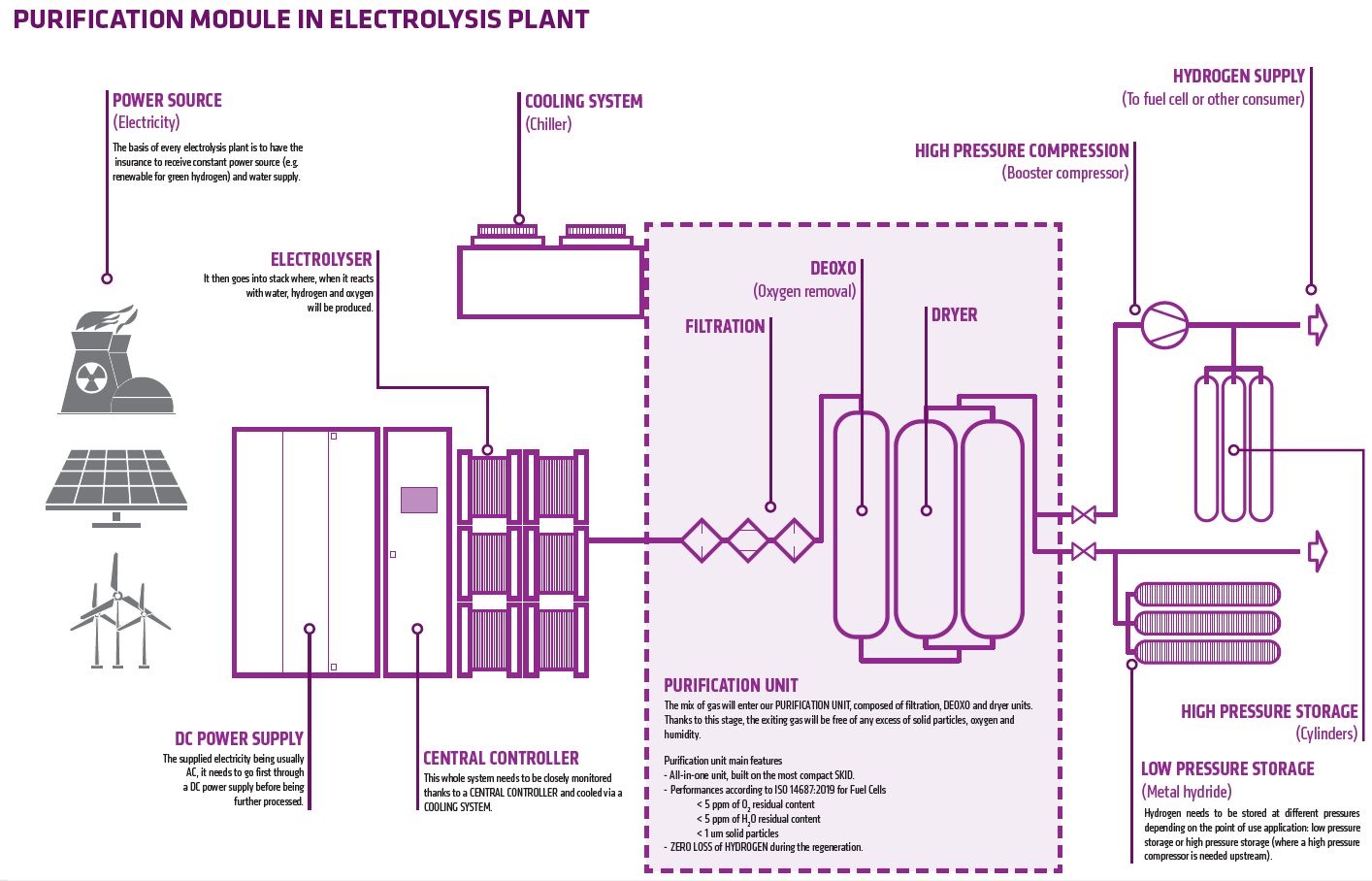

Each H2 BOX is configured according to the required hydrogen flow, pressure, temperature and outlet gas quality. The system can be easily integrated into electrolyser installations and is suitable for demanding applications, including hydrogen for fuel cells in accordance with ISO 14687:2019 requirements.

Key advantages

1. Complete purification system in one compact container
2. Continuous hydrogen drying and purification
3. Pressure dew point down to –40 °C or lower
4. Optional DeOxo unit for reducing oxygen below 5 ppm
5. Operating pressure up to 45 bar
6. Inlet temperature up to 80 °C
7. Reliable operation under fluctuating loads
8. Fully automatic operation
9. Closed-loop regeneration option with zero hydrogen loss
10. Quick installation and easy maintenance
11. Modbus TCP/IP and Profinet communication
12. CE and ATEX certified; IECEx available on request

H2 BOX systems are suitable for electrolysers, fuel cells, hydrogen refuelling stations, chemical and petrochemical processes, electronics manufacturing and other applications requiring high-purity hydrogen.
