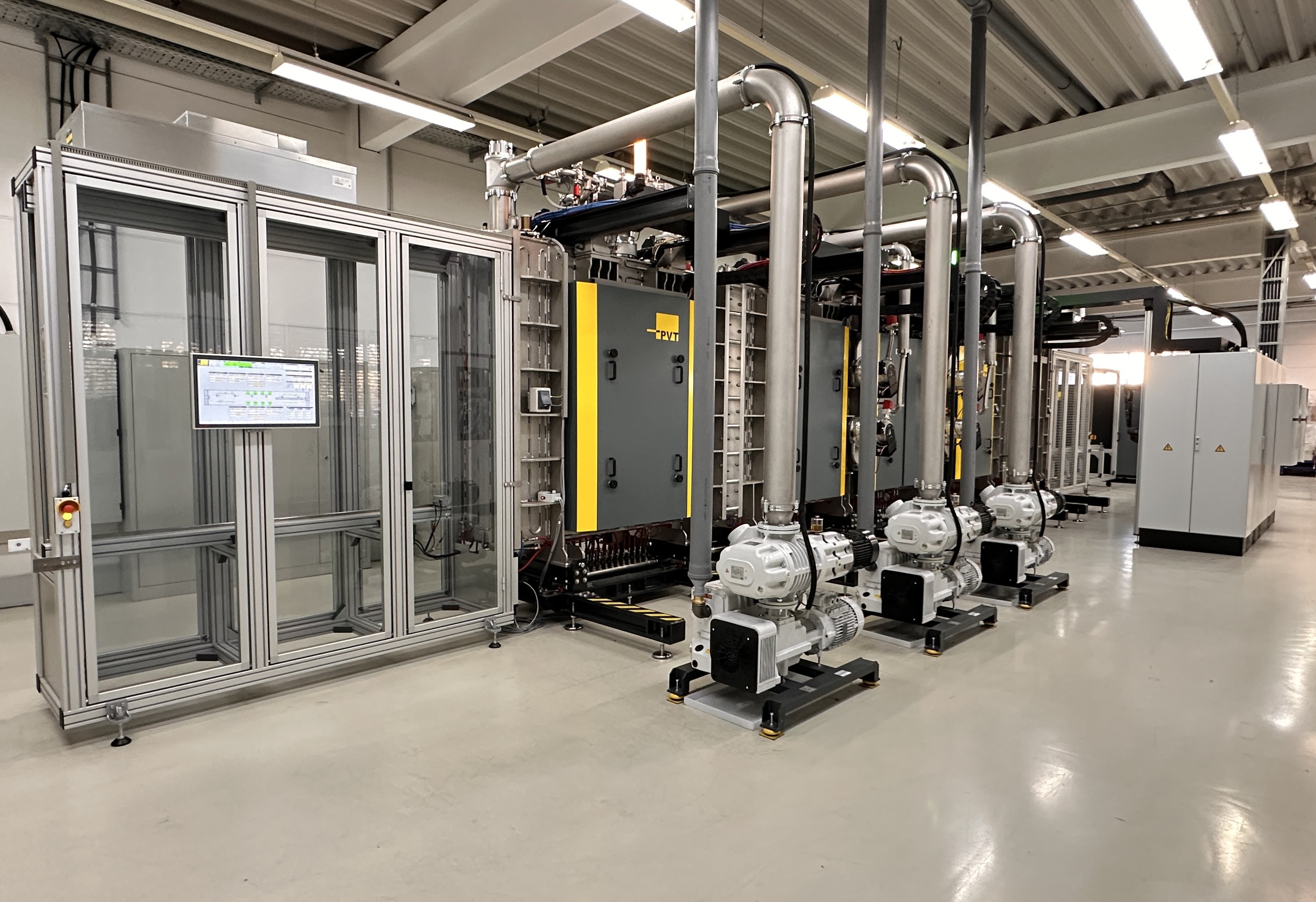

The in-line system i-L 3.5000 is characterized by:

• Robust construction for industrial series use, combined with highly developed vacuum technology.
• Stable manufacturing quality combined with advanced design.
• Highest reliability and easy maintenance due to well thought-out construction and design.
• The widest range of coating systems and coating technologies at the most competitive price.
• Simple operation of the system and optimized system for handling the frames with the parts to be coated.
• Flexibility of the system for future requirements: Future (as yet unknown) coatings can also be applied by simply modifying the system.
• Fully automated, computerized coating system with the guarantee of the best process reproducibility, data storage, reliability and user-friendliness.

System Specifications

Size of the internal transport frame = Maximum coating area: 1,800 × 1,000 mm

Cycle time - depending on layer structure and thickness: in the minute range

Simultaneous single-sided / double-sided coating: Both possible – throughput is doubled with one-sided coating

Coating thicknesses: From a few nm to a few µm

Coating technologies: Magnetron sputtering, HiPIMS V+, PECVD
