WHY STELION BOOSTER?

1. Electric driven: efficient, reliable compression with no need for compressed air or external drives.
2. Adjustable pressure: built for low to high-pressure applications.
3. CE-marked: designed to high safety standards
4. Oil-free: oil-free compression for applications that require higher gas purity and lower maintenance.
5. Full protection: incorporates 7-micron filtration at both the inlet and outlet to protect the system and ensure better operation.
6. Compact & mobile: easily deployable in labs, field setups, or remote environments.
7. Fast refuelling: refuel quickly and efficiently. Spend less time plugged in and more time on the go.
8. Automatic mode: set the target pressure and let the system manage the compression cycle with real-time control and safety monitoring.

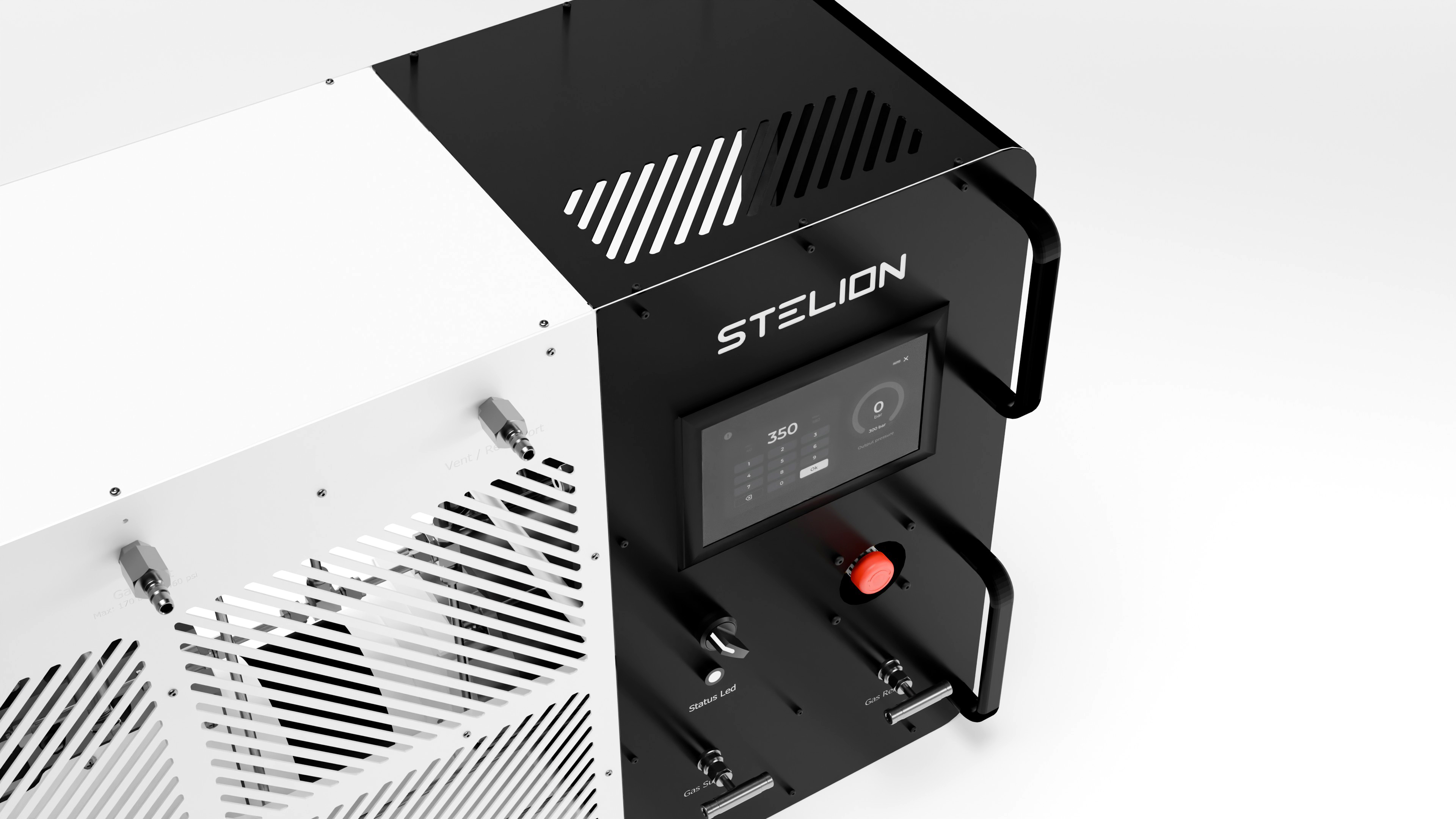

9. STELION UI: includes a touchscreen display with an intuitive, user-friendly UI for quick setup and confident operation.
10. Safety: includes electrical protections to ensure personnel safety and equipment protection.
11. Integrated emergency stop: includes an emergency stop function to immediately shut down the system.
12. Air-cooled: active ventilation system to maintain an adequate operating temperature.
13. Modular: ability to implement several compression units in parallel within the same system to increase flow rate.

MECHANIAL SPECIFICATIONS

1. Power supply: AC 230V
2. Power requirement: < 1.25 kW
3. Max outlet pressure: up to 350 bar
4. Working temperature: -30ºC – 65ºC
5. Noise: 63 dB
6. Gas inlet / outlet / relief connection: Quick coupling or 1/4" NPT male
7. Dimensions (L × W × H): 910 × 560 × 365 mm
8. Weight: 78 kg
9. Flow rate: 5–35 Nm³/h (depending on model and inlet pressure)*

* Flow rate can be increased by using configurations with multiple compression units in parallel. Please, contact us for more information.

MODELS AND INLET PRESSURE RANGES

1. STL 3000: 21–200 bar inlet
2. STL 1400: 6–31 bar inlet

Compatible Gases

1. Compatible gases include H₂, CO₂, CH₄, O₂, inert gases and more. (Contact Hydros Power for the full range of compatible gases.)

Features

1. User-friendly STELION UI designed for safety, speed and total control in the field
2. Designed to optimize compression and refueling, providing a safe and reliable solution built for demanding environments
3. Enables rapid deployment for use cases such as vehicle refueling, R&D activities, and stationary compression.
4. Input versatility: designed to integrate with different hydrogen sources, such as on-site electrolysis with a buffer tank or gas cylinders at 200 bar.
