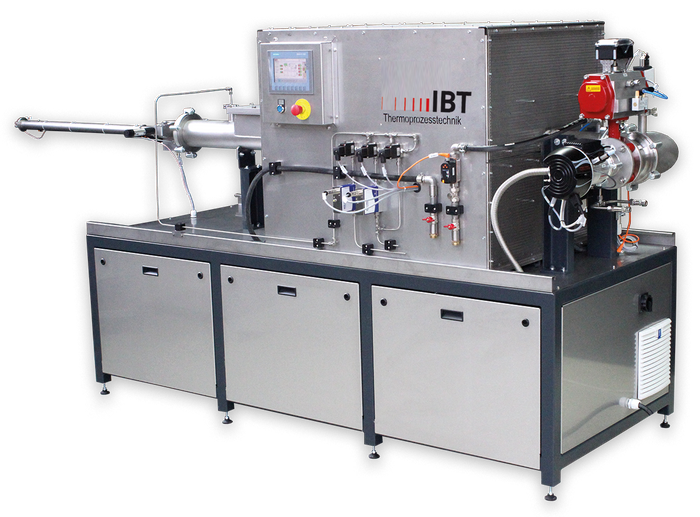

ThermoLine TUBE
)
Spectrum plant data
Plant data
- Working tube & volume according to process requirement
- Working tube arranged vertically or horizontally
- Temperatures up to 1800 °C
- Operation under vacuum, protective or forming gas
- Flap mechanism for exchange of working tubes
- Working tube static or as rotary tube
Design
- Rack made of stainless steel or mild steel with coloring
- Wall structure:
- Working tube
- Heating elements
- Radiation shields/ thermal insulation
- Stainless steel sheeting
- Control cabinet separate or integrated in the rack
Measurement, control and regulation technology
- Siemens PLC, industrial PC or industrial controller
- Control of power according to process temperatures
- Temperature measurement by thermocouples and pyrometer
- Single or multi-zone control of the heating elements
- Running of the process in program segments
- (ramps, holding times, change of atmosphere etc.)
- Documentation of process data for quality assurance
)
)
)
