Ideal Solution for Alkaline Water Electrolysis :

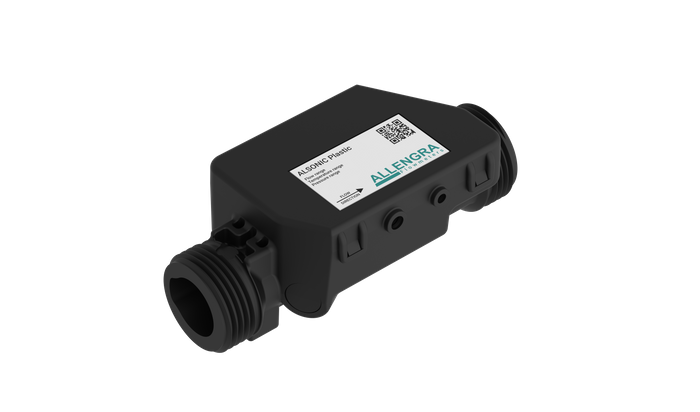

The ALSONIC plastic ultrasonic flow meter is perfect for challenging chemical applications, including alkaline water electrolysis. The sealless PPS plastic version is highly resistant to aqueous KOH solutions. This device combines volume flow measurement with KOH concentration determination, delivering all essential data for efficient process monitoring in one unit.

Advantages of Ultrasonic Flow Meters

- Non-Invasive Operation: Full non-invasive measurement; no sensor elements are in direct contact with the KOH solution. This prevents contamination, corrosion, and maintenance issues.

- High Precision: By providing accurate flow rate and concentration measurements, operators can fine-tune the process to maintain optimal conditions for hydrogen production.

- Real-Time Data: Continuous monitoring allows for instant adjustments, preventing inefficiencies and ensuring process stability.

Overview:

▪ Available in DN15 – DN50

▪ For Water, Water+Glycol, DI Water and many others

▪ Accuracy ± 2 % of measured value

▪ Almost no pressure loss

▪ Analogue & Bus communication

▪ Integrated Temperature Sensor

▪ Integrated Pressure Sensor Optional

▪ External Temperature Probe for heat metering, Optional

▪ Gas Bubble Detection

▪ Glycol Concentration Detection
