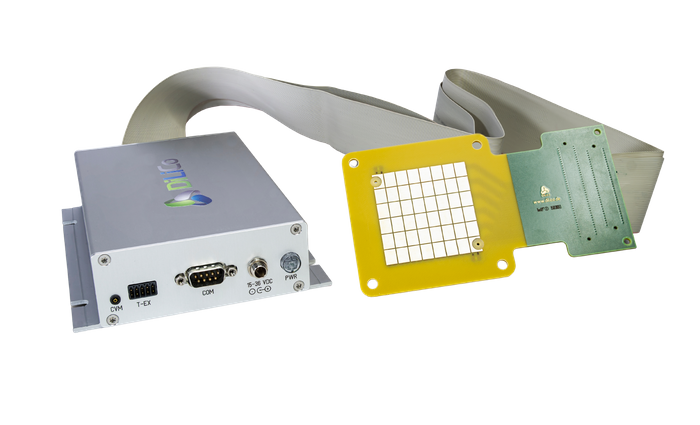

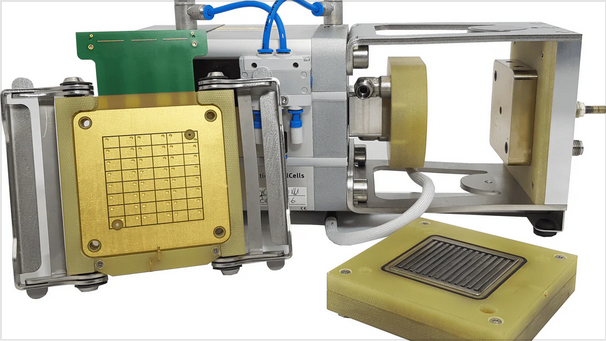

DILICO CURR TEMP measures distributed current densities and temperatures within the quickCONNECTfixture single-cell test system offered by balticFuelCells GmbH for the characterization of fuel cells and electrolyzers. The measurement method visualizes different effects on current and temperature distribution across the membrane surface, such as drying, flooding, thermal hotspots, gas undersupply, cell clamping pressure behavior, and aging in different membrane regions.

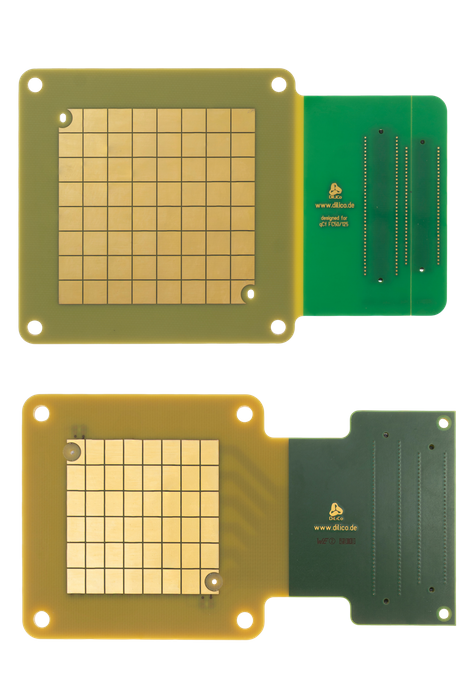

DILICO CURR TEMP for the baltic quickCONNECTfixture is available for both 25 cm² and 50 cm² cell areas. In addition to measuring distributed current density and temperature, it also records single-cell voltage and offers connections for five temperature sensors for the media circuits. The license-free software stores and visualizes the distributed current densities and temperatures across the cell area, and outputs a range of statistical key figures.

All electronics and connection cables are included as standard, meaning that the customer only needs to provide a USB port.

With DiLiCo CURR TEMP for the baltic quickCONNECTfixture, a cost-effective measurement system is available for the characterization of galvanic cells and their components, enabling maximum operational insight from within the cell.
