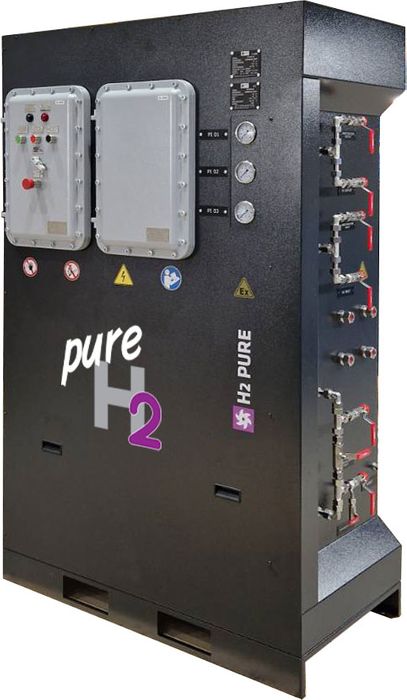

H2-PURE Unit
)
)
)
)

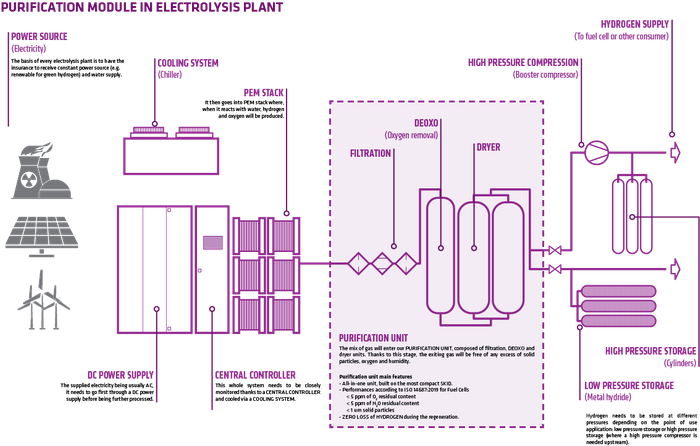

A proven and robust design enables efficient and reliable operation, fast installation and simple maintenance. The Purification Unit is suitable for easy integration in the electrolyser hydrogen package. Version “P” consumes up to 2 % of hydrogen for regeneration while version “X” performs regeneration in a closed loop meaning zero hydrogen is wasted during regeneration. Both versions are available with an optional deoxo unit that reduces oxygen content down to <5 ppm.
Characteristics of H2-PURE Units
| Operating pressure: | up to 45 bar |
| Inlet temperature: | up to 80 °C |
| Ambient temperature: | 1,5 to 50 °C (check also blower suction conditions) |
| Pressure dew point: | -40 °C (lower PDP on request) |
| Voltage, Frequency: | 400 V, 50 Hz |
| Protection class (controller): | IP 65 |
| Communication: | Modbus TCP/IP, Profinet TCP/IP (other on request) |
| Filter requirement (inlet)*: | Super fine coalescing |
| Filter requirement (outlet)*: | Dust filter; 1μm |
| Column insulation: | YES |
| Valve position switches: | YES |
| Certification: | CE/ATEX (IECEx on request) |
)
)
)
)
