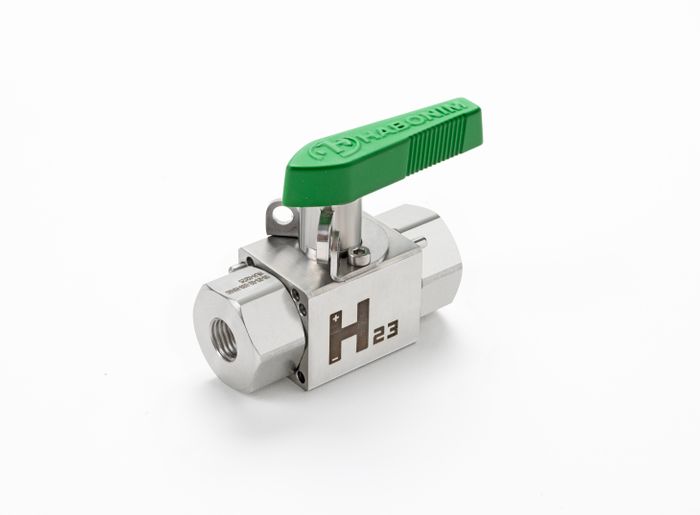

H23 Hydrogen Service High Pressure Floating Ball Valve
)
Habonim H23 Hydrogen service valve is specifically designed to provide long life, reliable and durable solution for compressed Hydrogen
through the various stages of the hydrogen supply chain. The H23 is the only valve in its orifice scale to have an anti-blowout stem design.
Size Range 1⁄4”-9⁄16” (DN8-DN14)
Pressure Range PN700 (10,000PSI)
Operation
- Maximum Working Pressure: 700bar (10,000psi)
Working temperature: -40°C up to +85°C (-40°F up to +185°F).
Design
- Anti blowout stem design
- Integral locking device for manual version
- Bi-directional
- Threaded body
- AutomationPanel mounting from top and bottom side
by rigid screwed connection - Total HermetiX Integrity package with:
ISO 15848-1 and API 641 emission standard certificated design
ISO 10497 and API607 fire-safe standard certificated design
Double body sealing - O-ring enhanced stem sealing
Testing & Certifications
- ATEX IIC
- SIL2(3)
- 100% shell & inline leak tested
- Marine classification (on demand): DNV GL, LR, BV, ABS,
KR, RINA, others
)
)
)
)
