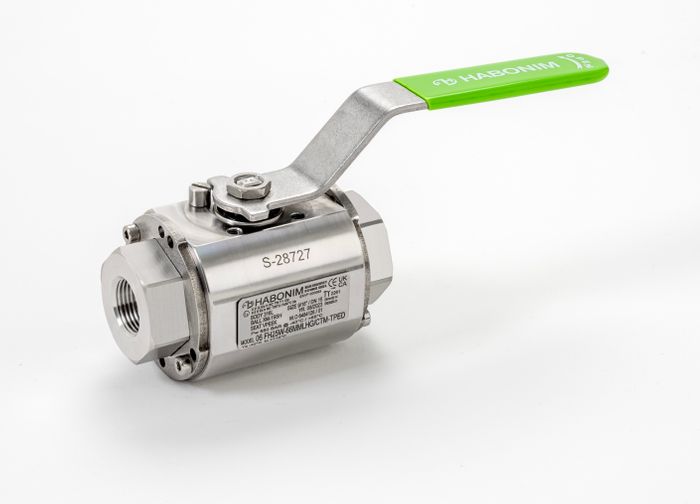

H25 Hydrogen Service High Pressure Floating Ball Valve
)
)
)
)
)
)
Hydrogen Service High-pressure Floating Ball 3 Piece Threaded-Body processes valve. Rated to 550 bar / 8,000psi.

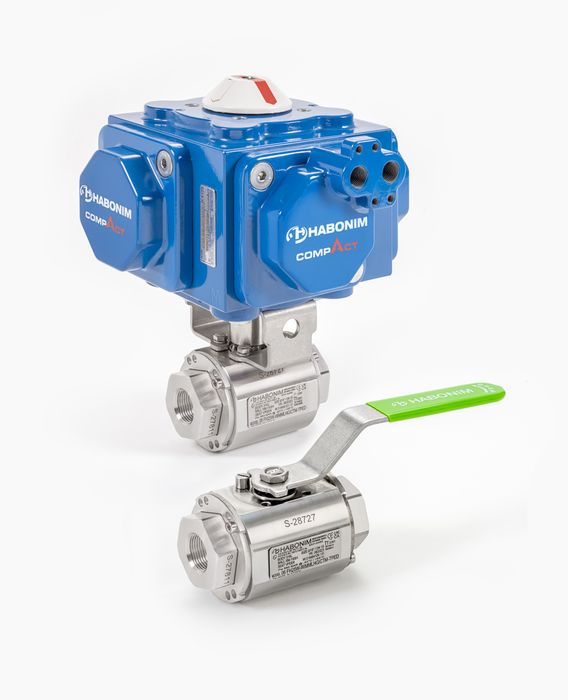

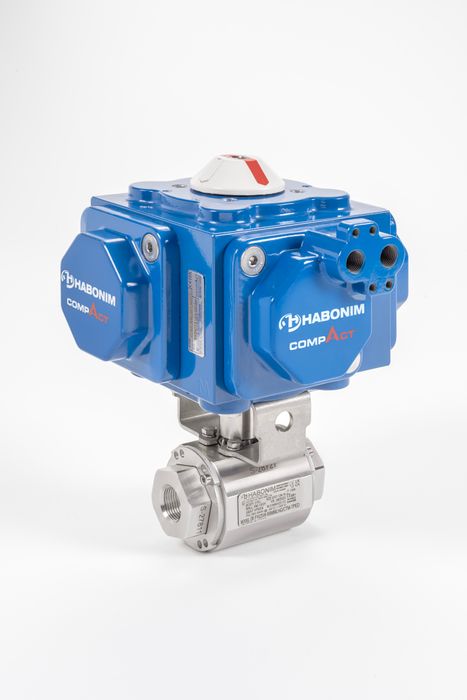

Actuator ready with ISO plate.
Size Range 1⁄4”-1 1⁄2” (DN8-DN40)
Pressure Range PN550 (8,000PSI)
Operation
- Maximum Working Pressure: 550bar (8,000psi)
Working temperature: -40°C up to +85°C (-40°F up to +185°F).
Materials
- Stainless steel body & ends
- All materials compatible for Hydrogen use
Design
- Threaded body
- Automation-ready with standard ISO 5211 connecting plate
- Total HermetiX Integrity package with:
ISO 15848-1 and API 641 emission standard certificated design
ISO 10497 and API607 fire-safe standard certificated design
Double body sealing
Testing & Certifications
- TPED Certified, up to 550bar (8,000psi) MWP
- 100% shell & inline leak tested
- Marine classification (on demand): DNV GL, LR, BV, ABS,
KR, RINA, others
)
)
)
)
