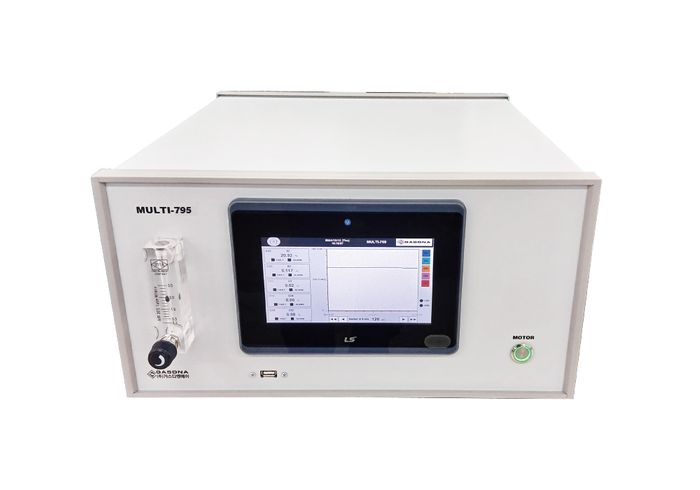

The MULTI-795 is GASDNA’s advanced multi-channel suction-type gas analyzer, engineered to deliver precise and stable measurement of multiple gases within a single platform. Designed for maximum flexibility, it allows users to configure three or more gas channels according to their specific application requirements.

Key Features

• Multi-channel capability: Simultaneous detection of up to 5 gases

• Measuring Ranges:

  • CO₂: 0–100 ppm to 0–10,000 ppm / 0–2% to 0–100%VOL

  • CO: 0–2000 ppm / 0–5% to 0–100%VOL

  • CH₄: 0–5000 ppm / 0–5% to 0–100%VOL

  • SO₂: 0–2000 ppm

  • O₂: 0–1000 ppm / 0–100%VOL

  • H₂: 0–2% to 0–100%VOL, 90–100%VOL

  • NH₃, NO, N₂O, SF₆, TEOS, CH₂F₂, CH₃Br, SO₂FS, and more

• Sensing Principles: NDIR, Optical, NDUV, TDLS, TCD (application-specific)

Dimensions

• Size: 500 × 231.4 × 482.6 mm (W × H × D)

Applications

Ideal for semiconductor manufacturing, petrochemical plants, environmental monitoring, power generation, and hydrogen industries, where simultaneous and accurate gas monitoring is essential.
