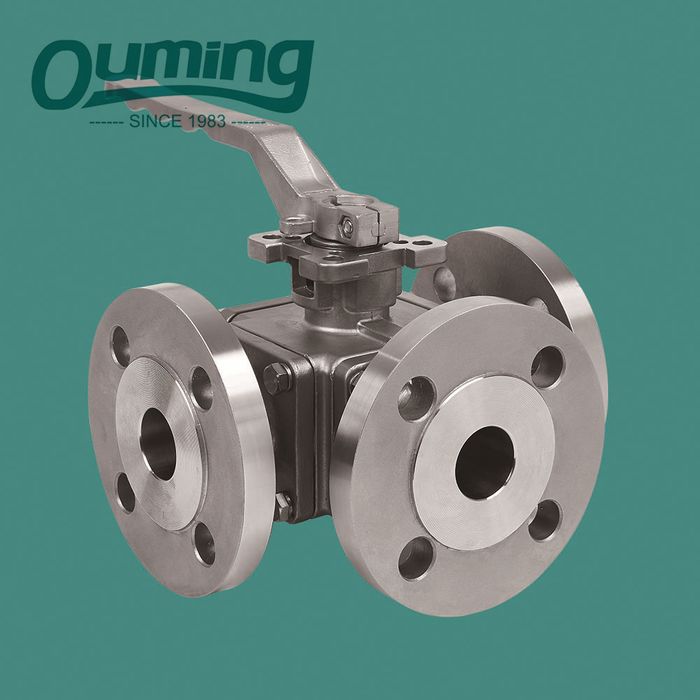

Multi port Flange ball valve
)
)
)
)
Design standards: ANSI B16.34.API608
Wall thickness standard: ANSl B16.34,EN12516-3
Thread standard: ANSI B1.20.1;BS21:DIN 2999/259:1S0 228-1; 1S07/1;JIS B0203
SW standard: ASME B16.11
BW standard: ASME B16.25/IS01127/EN12627
Flange standard: ASME B16.5 CLASS 150/300;EN1092-1;HG20592GB/T9113:PN10-PN40; JIS B2238 10K/20K
Test standard: APl 598:EN 12266
Split body design. The installation area is small, and the side mounting of the bonnet is convenient for maintenance and repair.
Flange connection, threaded connection and socket welding can be selected for bonnet connection, which can meet the requirements of multi connection methods for one valve at the same time.
IS0 5211 direct mounting pad design can directly install the actuator.
)
)
)
)
