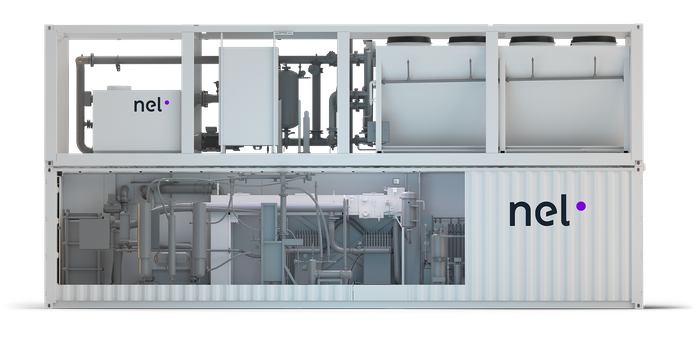

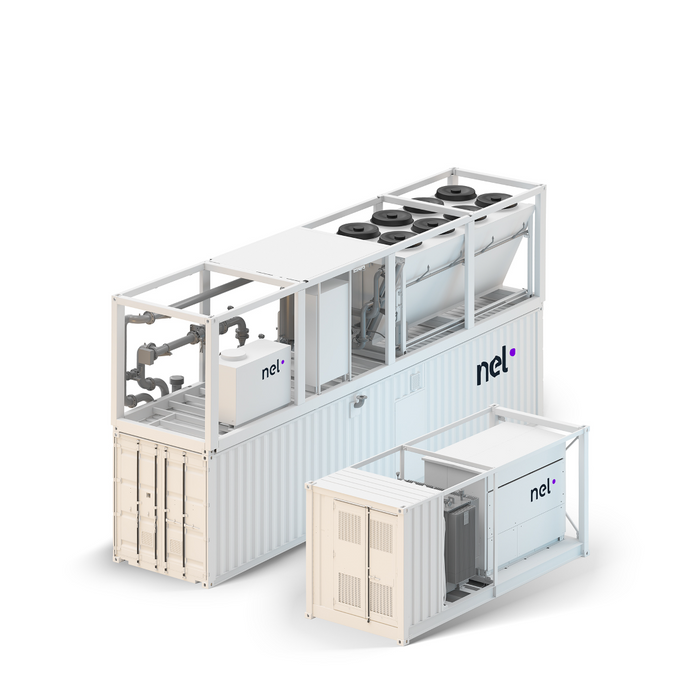

PEM Electrolyser – MC Series
)
)
)
)
Specifications
| Model | MC250 | MC500 |
|---|---|---|
| Net Production Rate | ||
| Nm³/h (m³/h @ 0°C, 1 bar) | 246 Nm³/h | 492 Nm³/h |
| SCF/h (ft³/h @ 70°F, 1 atm) | 9,352 SCF/h | 18,704 SCF/h |
| kg/24 h | 531 kg/24 h | 1,062 kg/24 h |
| Turndown Range | 10 to 100% | 10 to 100% |
| Power Consumption at Stack at 100% Capacity – beginning of life and dependent on configuration and operating conditions | 4.7 kWh/Nm³ – 53.2 kWh/kg | 4.7 kWh/Nm³ – 53.2 kWh/kg |
| Purity – with optional high purity dryer | 99.999+% | 99.999+% |
| O₂-Content in H₂ | < 1 ppm v | < 1 ppm v |
| H₂O-Content in H₂ | < 5 ppm v | < 5 ppm v |
| Delivery Pressure | 30 barg (435 psig) | 30 barg (435 psig) |
| Dimensions | ||
| Electrolyser Enclosure – W x D x H, without vent stack | 12.2 m x 2.5 m x 3 m (40 ft x 8 ft x 9.9 ft) | 12.2 m x 2.5 m x 3 m (40 ft x 8 ft x 9.9 ft) |
| Power Supply Enclosure – W x D x H | 6.1 m x 2.5 m x 2.6 m (20 ft x 8 ft x 8.5 ft) | 6.1 m x 2.5 m x 2.6 m (20 ft x 8 ft x 8.5 ft) |
| Ambient Temperature – low and high ambient temperature options available | -20 to 40ºC (-4 to 104ºF) | -20 to 40ºC (-4 to 104ºF) |
| Electrolyte | Proton Exchange Membrane (PEM) – Caustic Free | Proton Exchange Membrane (PEM) – Caustic Free |
)
)
)
)
