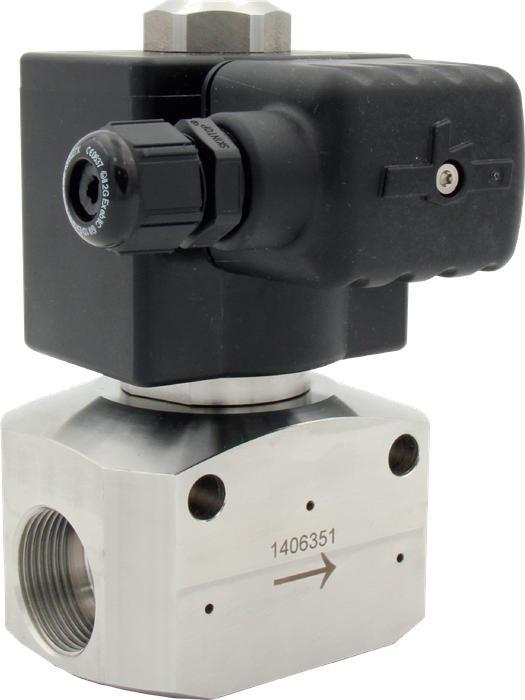

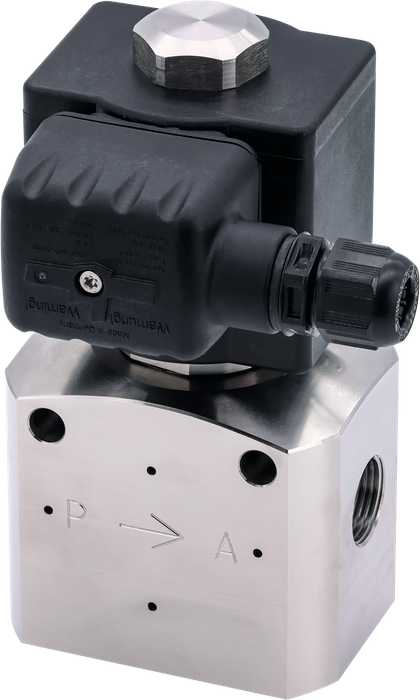

Series 83830/83840 – High pressure solenoid valve DN 8 & DN 13 with integrated check-valve
)
)
)
)
- Maximum inlet pressure: 1,050 bar
- Function: 2/2 normally closed
- No internal or external soft sealing
- Operating pressure range: 10 … 1050 bar
- Burst pressure: 3.000+ bar
- Port size: 13/16-16 UNF and 3/4-14 NPS cone &
thread for MP tubing - Material: All fluid wetted, pressure retaining parts
made from 316L / 1.4404 - Ambient temperature: –45 … +55°C
- Minimum fluid temperature: –50°C
(Pre-cooling ready) - Voltage: 24 V d.c., 100% ED., IP66, 16 W
- Eliminates the need for pilot gas systems
- Ex: II 2G EX eb mbIIC T4 Gb;
II 2D EX mb tbIIB T125°C Db - PED: Article 4, chapter 3
- Optional: Integrated check-valve
)
)
)
)
