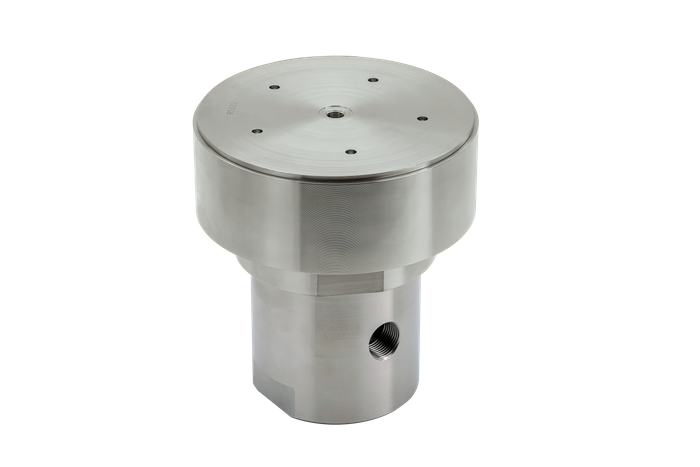

Series D479 – High pressure proportional regulator
)
- Maximum inlet pressure: 1,050 bar (15.229 psi)
- Manual adjustment via via proportional dome
- 0 … 4 bar
- Material: stainless steel 316L
- Seat material: stainless steel/1.4401
- Ambient temperature: –45 … +50°C,
- Media temperature: –40 … +85°C,
depending on the sealing material - Port size:
13/16-16 UN cone thread connector for 9/16” MP tubing and 9/16-18 UNF cone thread connector for 3/8” MP tubing
)
)
)
)
