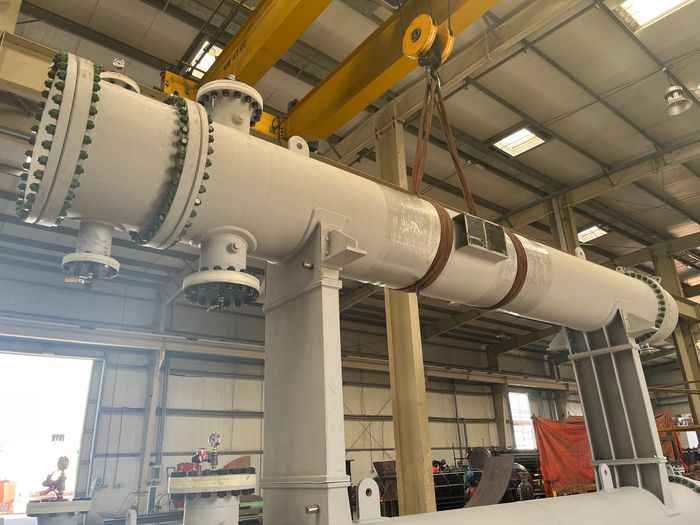

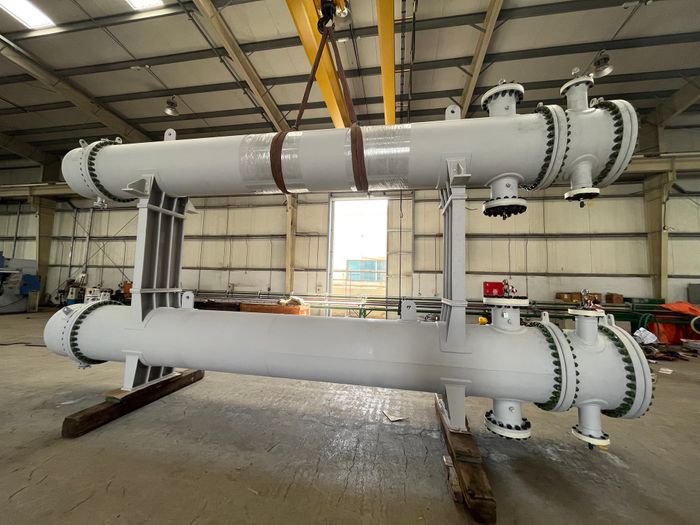

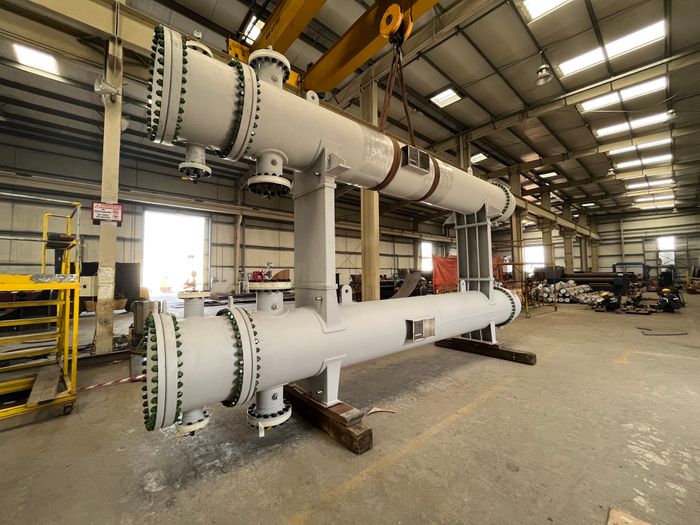

Shell & Tube Heat Exchanger - Utility Gas Cooler
)
)
)
)
)
)
As part of a design upgrade initiative, Dolphin Group delivered a replacement Shell & Tube Heat Exchanger for ADNOC LNG, adhering to TEMA Type H-AFM specifications.
The exchanger features a robust build with carbon steel shell and Cu/Ni 90/10 (C70600) tubes, measuring Ø746 mm x 7186 mm long, and certified under ASME Sec. VIII Div. 1 (U-Stamp).
Year: 2022
Tag No.: 2-E-0116/0216 A/B
Engineered for 1.84 MPa @ 120°C (tube side), the unit provides efficient gas cooling for utility systems while ensuring high performance and corrosion resistance for LNG operations.
)
)
)
