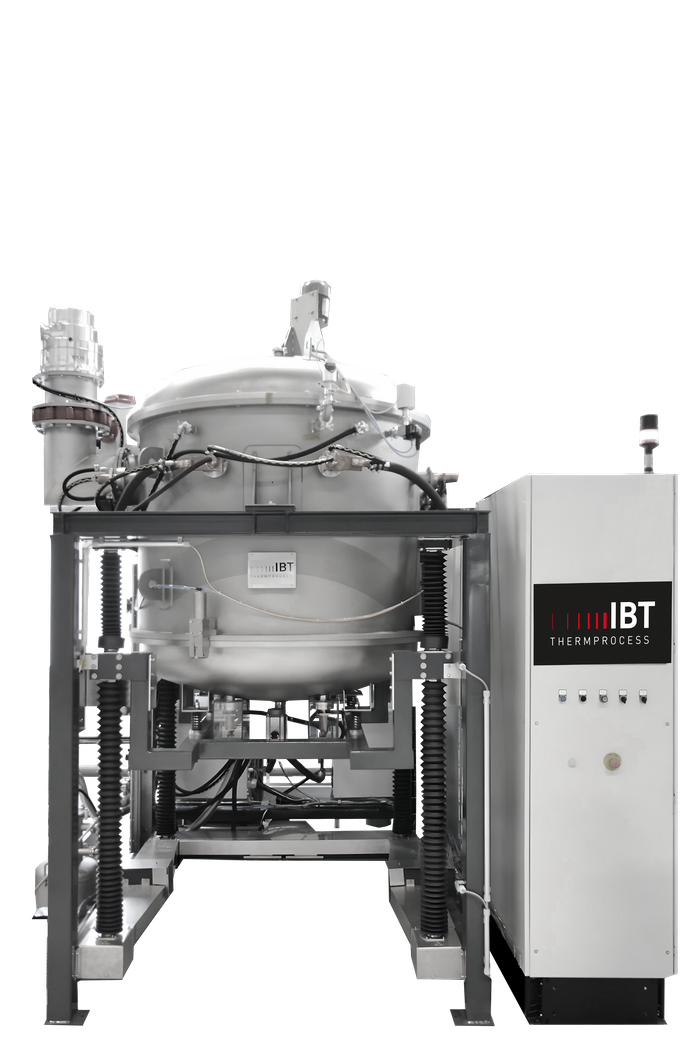

ThermoLine VAC
)
Spectrum plant dat.
Plant data
- Temperatures up to 3000 °C
- Useful volume according to requirement
- Vacuum: up to 1*10-6 mbar
- Rotary vane and turbomolecular pump
- Operation under vacuum, protective or reaction gas
- Technical afterburning
- Design as laboratory furnace
Design
- Frame made of mild steel surface treated or stainless steel
- Stainless steel vessel (double-walled, water-cooled),
- optional: pressure vessel
- Heating elements according to process requirements
- High temperature insulation or radiation shields
- Control cabinet integrated on the rack
- Vacuum pumping station integrated
Measurement, control and regulation technology
- Siemens PLC, industrial PC or industrial controller
- Control of power according to process temperatures
- Temperature measurement by thermocouples and pyrometer
- Single or multi-zone control of the heating elements
- Running of the process in program segments (ramps, holding
- times, change of atmosphere etc.)
- Documentation of process data for quality assurance
- Applications.
)
)
)
