Body:

Standard specifications

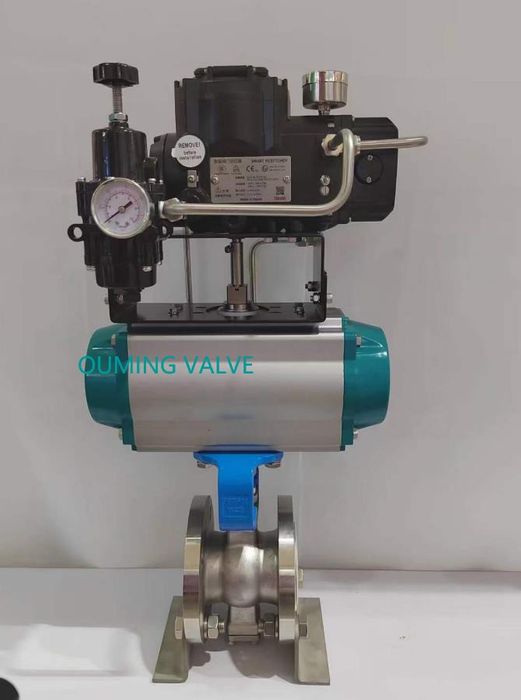

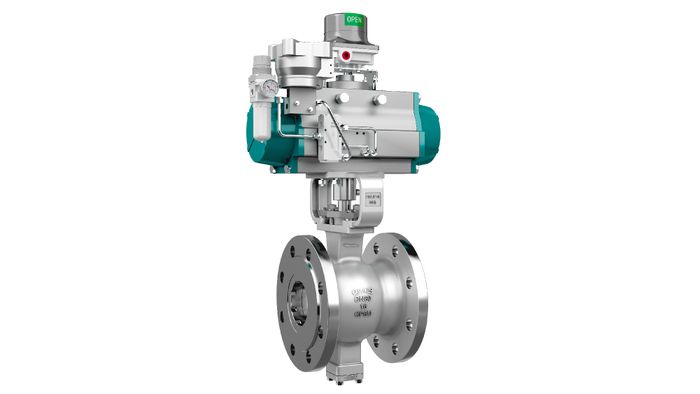

Form Type:Straight-Through Casting V type Ball valve

Standard: JB/T 13517-2018

Nominal pressure:PN 16, 20, 25, 40, 50, 63, 100, 110

End Connection: Flange ,Wafer Flange Standard

Material:WCB,WC6,LCB，CF8，CF3，CF8M，CF3M，Etc.

Packing: Teflon V-ring or Graphite

Flange Standard :GB/T 9124; HG/T 20592; ASME B16.5; JIS B2201;

EN 1092

NPS½(15),"(20),1”(25),1%(32),1½(40),2“(50),2½“(65),3“(80),4"(100)

,5"( 125),6(150),8"(200),10"(250).12“(300).14"(350).16-(400)Class 150,300,600

TRIM:

Valve Plug Type:Ball Type Plug

Flow Characteristics:Approximate equal percentage characteristic
