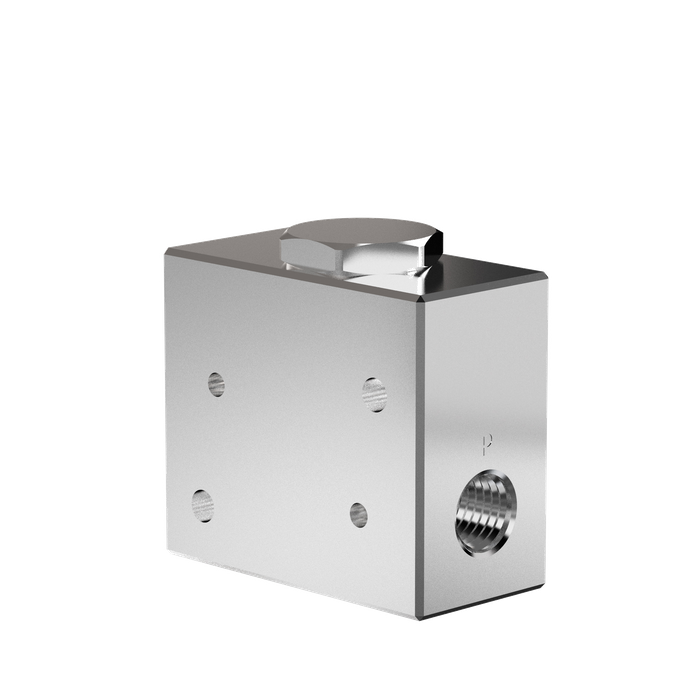

Series 2/529 PN

Pressure controlled valve for high pressure applications

2/2-way pilot operated piston valve





VALVE FEATURES

• For high pressure applications up to 600 bar
• Pressure difference is required
• High life time
• High-quality materials
• Reliable and sturdy sealing elements



Pressure 1 - 600 bar

Medium Clean, neutral gaseous and liquid media

Temperature range

Medium: -40 °C / +80 °C

Environment: -20 °C / +60 °C

Body material Stainless steel 1.4571 Stainless steel 1.4404

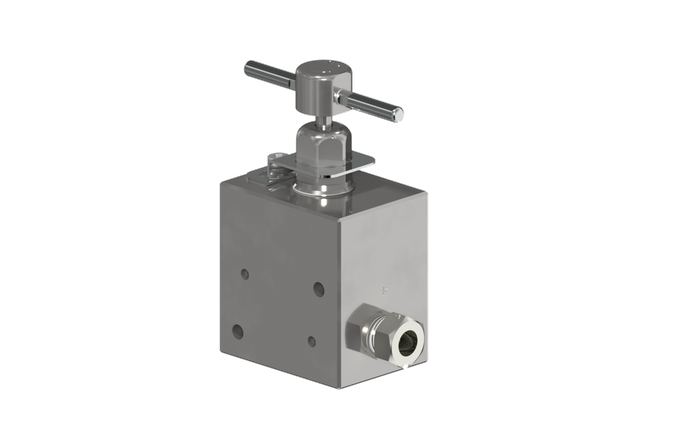

Series 13HD

Manually operated shut-off valve for high pressure applications

2-way shut-off valve manually operated



VALVE FEATURES

• For high pressure applications 1000 bar
• High life time
• Simple and compact valve design
• High-quality materials
• Reliable and sturdy sealing elements Cartridge design optional



Pressure range: 0 - 1000 bar (Cartridge 0 - 900 bar)

Medium: Clean, neutral, liquid or gaseous

Viscosity: 50 mm²/s

Temperature range:

Medium -40 °C bis +80 °C

Ambient -20 °C bis +50 °C

Body material: Stainless steel 1.4462, 1.4404* * with option 1W for hydrogen







Series 17HD

Check valve for high pressure applications

2-way check valve



VALVE FEATURES

• For high pressure applications 1000 bar
• High life time
• Simple and compact design
• High-quality materials
• Reliable and sturdy sealing elements Cartridge design optional



Connection: Threaded 19/16-18 UNF Other connection like Cartridge on request

Installation: Preferable upright

Pressure range: 0.5 - 1000 bar

Medium: Clean, neutral, liquid or gaseous

Temperature range:

Medium -40 °C bis +80 °C

Ambient -20 °C bis +80 °C

Body material: Stainless steel 1.4462, 1.4404* * with option 1W for hydrogen
